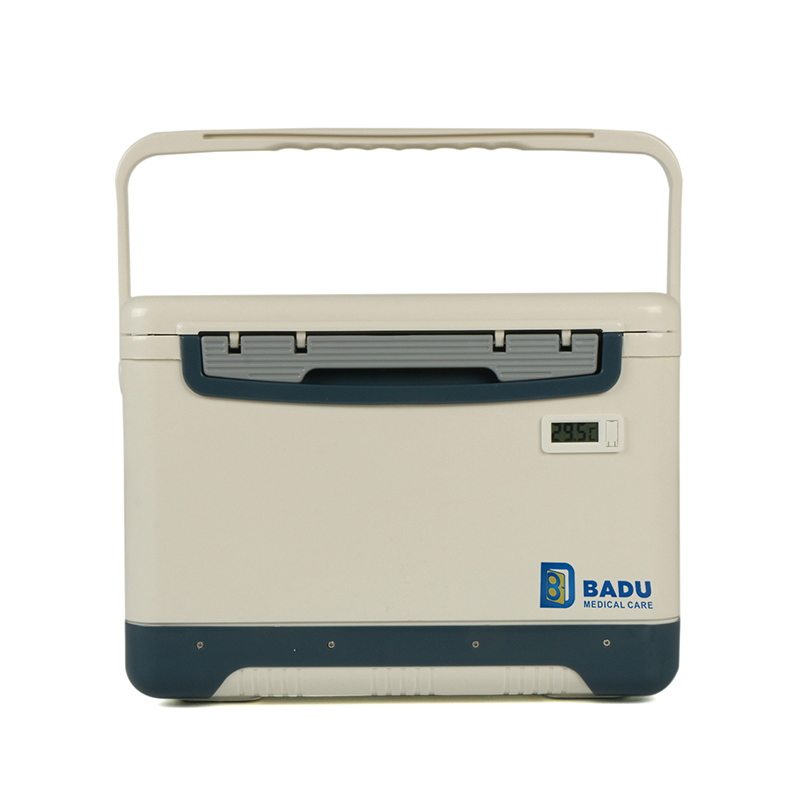

portable cold storage 8L vaccine carriers and cold boxes
| Model No.: | BD23287 |
| Color/Logo: | Any As Your Request |
| Payment: |  |
| Shipping: | Ocean Shipping Service from China to Global |
| Lead Time: | Within 30 Days After Sample Confirmed & Deposit Received |
| Certificate: | CE,FDA,SGS,MSDS,ISO9001 |
- Product name:
- vaccine carriers and cold boxes
- Empty Capacity:
- 18Liter
- Cold Space Capacity:
- 8L
- Accessory1:
- LCD temperature display
- Cold source:
- 12pcs Ice bricks or 12pcs ice packs for choice
- Accessory 2:
- aluminium foil liner
- Certificate:
- ISO, CE Mark
- Acceesory 3:
- plastic handle and shoulder strap
Portable cold storage 8L vaccine carriers and cold boxes
Cold boxes are insulated containers that can be lined with cold source(ice bricks or ice packs) to keep vaccines and diluents cold during transportation and/or short period storage.
Vaccine Carriers consisit of an injection moulded, insulated box fitted with an insulated hinged lid, seal,positive closing device, and moulded carry bandle.With its full body polyurethane insulation, it is designed to give superior long lasting temperatur performance.
A removable liner manufactured from durable aluminized heat reflective material is fitted with pockets for storage of forzen BD Ice packs. These offer the medical and food cold chain industries crtical protection and thermal stability over a range of ambient temperature from +43°C to -10°C.
The cold box stays cool for 24-32 hours at 2 to 8° C at 35°C ambient temperature and for up to 36-48 hours below 25° C ambient temperature.
Technical Information
Usable cold space dimension(cm):
29*12.5*22cm
External/Internal Moulding(Injection Mouldings):
*PP EPC30R-H
Usable cold sapce Capacity(L):
8Liters
Lid moulding(Interna & External Injection mouldings)
*PP EPC30R-H
Weight fully loaded(kg):
4.03kg
Insulation Material:
Polyurethanes
Weight empty(kg)
11.9kg
Liner Material:
PVC/Aluminium Foil Laminated,NBR thermal insulation
Exteranl dimension(L*W*H cm)
44*28.5*31cm
Type of ice bricks required:
water packs
Internal dimension(L*W*H cm)
35.8*19.5*24 cm
Bricks dimension:
12pcs BDBH360 16*9.5*3cm
Cold life at +43°C ambient temp.
24 hours
Ice bricks supplied
YES
Warm life at -10°C ambient temp.
20 hours
Lid type and fixing
fixed hinges
temperature data display
YES, with one AG battery
Handle
webbing shoulder strap or hard Plastic handle for choice
Application
Our vaccine carrier and cold boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for:
Vaccines,Insulin,Biopharmaceutical, Life Science and other Medical Products, IVD products and biological specimens,Selected fresh food, drink and dairy products.
Instruction
1.Set the refrigerator at -18°C or lower.
2. Check that all BD water ice bricks are filled to the mark. in a liquid state and do not leak. Reject any leaky packs.
3. For best results, place the BD water ice bricks in a single layer flat on trays in the refrigerator, sufficiently spaced for air flow over the surface of the bricks.
4.Freeze the BD water ice bricks for 24 hrs. minimum. The bricks must be competely solid before use.
5. Open the lid of cold boxes and put liner in place.
6. If a digital thermometer and/or high temperature alarm is installed, check the batteries, and replace if neccessary. Clean and check the cable and sensor.
7. Remove the BD Water Ice Bricks from the refrigertator. Condition by placing them flat in a well ventilated position at room temperature until the surface temperature rises to above 0°C (dew will form on the surface of the Bricks at this point).
8. Place the BD Water Ice Bricks in the liner pockets.
9 .Close the lid, and wait for the temperature inside the box to reduce to below 8°C.
10. Open the lid and transfer the Vaccine or other product directly from the refrigerator to vaccine carrier.
11. Place the thermometer sensor at the centroid of the cold space.
12. Close the lid of box and fasten button.
Note:
Depending on external factors such as the ambient temperature, ambient humidity, how many times the box is opened etc. As such the responsibility for ensuring the medication is kept cold enough is solely that of the user and Badu Technology Co., Ltd cannot be held responsible or liable.
PRODUCT WARRANTY
BADU(XIAMEN) TECHNOLOGY CO., LTD. (the Manufacturer) warrants to the Original Purchaser that Tvaccine carriers and cold boxes manufactured and packaged by the company and delivered in new condition are fit for the purpose for which the products were designed and manufactured, and are warranted against defects in materials and workmanship which under normal use result in breakdown or other failure within a period of ONE YEAR (The Warranty Period) from date of original purchase.
