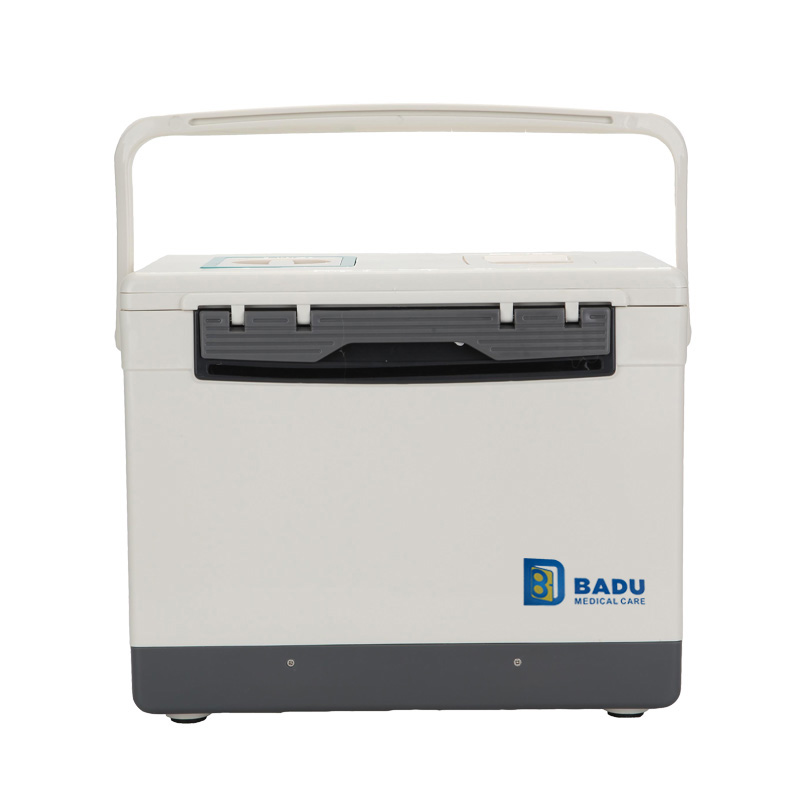

portable cold chain vaccine storage chill box
Model No.: | BD23297 |
Color/Logo: | Any As Your Request |
Payment: | |
Shipping: | Ocean Shipping Service from China to Global |
Lead Time: | Within 30 Days After Sample Confirmed & Deposit Received |
Certificate: | CE,FDA,SGS,MSDS,ISO9001 |
- Item NO:
- BD8014
- Product name:
- cold chain vaccine chill box
- Empty Capacity:
- 14L
- Usable cold space :
- 5L
- Empty Weight:
- 4kg
- Full weight(inclu. ice bricks and liner):
- 9kg
- Carton packaing box dimension:
- 61*44*36cm/2pcs
- Certificate:
- ISO,CE mark
portable cold chain vaccine storage chill box
Cold chain vaccine chill box are insulated containers that, when lined with frozen ice-packs, keep vaccines and diluents cold during transportation and/or temporary storage. They are smaller than cold boxes and are easier to carry if walking.
Cold chain vaccine chill box are used to transport vaccines and diluents to outreach sites and for temporary storage during health facility immunization sessions. In small health facilities.they are used to bring monthly vaccine supplies from the district store. Vaccine transport cooler box are also used to store vaccines when the refrigerator is out of order or is being defrosted.
Different models of Cold chain vaccine chill box have different storage capacities.
Removable Liner
The insulated removable liner holds the frozen BD ice bricks in place.
The liner is liquid tight, conveniently contains any accidental spills that may occur, and safely isolates shards and pieces of broken glass that may result from accidental damage.
Ice packs are flat,square plasitc bottles that are filled with water and frozen. Ice packs are used to keep vaccines cool inside insulated carriers cooler box.
Technical Information
Usable cold space dimension(cm): | 26*9.5*20cm | External/Internal Moulding(Injection Mouldings): | *PP EPC30R-H |
Usable cold sapce Capacity(L): | 5Liters | Lid moulding(Interna & External Injection mouldings) | *PP EPC30R-H |
Weight fully loaded(kg): | 9kg | Insulation Material: | Polyurethanes |
Weight empty(kg)4 | kg | Liner Material: | PVC/Aluminium Foil Laminated,NBR thermal insulation |
Exteranl dimension(L*W*H cm) | 40*25.5*32cm | Type of ice bricks required: | water packs |
Internal dimension(L*W*H cm) | 33.5*17*25 cm | Bricks dimension: | 10 pcs 0.3L ice bricks |
Cold life at +43°C ambient temp. | 24 hours | Ice bricks supplied | YES |
Warm life at -10°C ambient temp. | 20 hours | Lid type and fixing | fixed hinges |
temperature data display | YES, with one AG battery | Handle | webbing shoulder strap or hard Plastic handle for choice |
How to load cold chain equipment
Load vaccines into Cold chain vaccine chill box as following.
1. At the beginning of the day of the session, take all the frozen ice-packs you need from the freezer and close the door.
2. Condition frozen ice-packs properly, by allowing ice-packs to sit at room temperature until ice begins to melt and water starts to form. You should check to see if an ice-pack has been conditioned by shaking it and listening for water. This will prevent freeze-sensitive vaccines from freezing.
3. Put conditioned ice-packs against each of the four sides of the insulated carriers cooler box and on the bottom of the cold box if required.
4. Put aluminium foil liner into insulated carriers cooler box.
5. Put the vaccines and diluents in the pockets aluminuim foil liner.
6. Close the cooler box lid tightly.
